ACWM-Phys
Investigating Generalized Physical Interaction in Action-Conditioned Video World Models

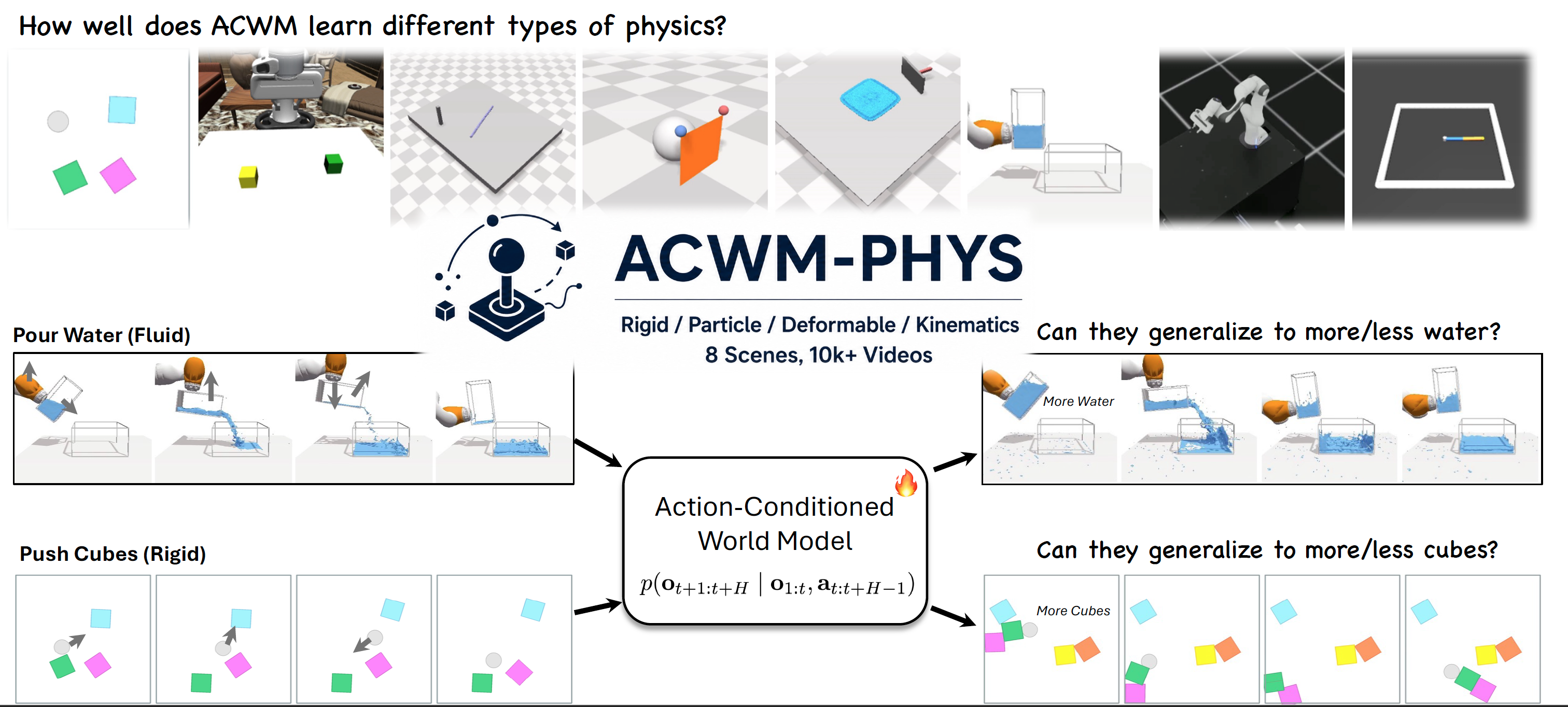

A benchmark of 8 physics-rich environments spanning four interaction regimes — rigid-body, deformable, particle, and kinematics — paired with ACWM-DiT, a latent diffusion transformer trained with flow matching. We probe whether modern action-conditioned video models actually learn physics, or merely appearance.
Existing benchmarks are confined to egocentric navigation or narrow rigid-body manipulation. ACWM-Phys spans rigid-body, deformable, particle, and kinematic regimes so we can finally compare prediction quality across physical phenomena rather than within a single domain.
Every environment ships a physically meaningful, exactly reproducible distribution shift — doubled particle counts, unseen cube counts, larger cloth, expanded goal regions — so we can measure the InD → OoD gap and pinpoint where diffusion world models still rely on appearance shortcuts.
Each environment ships 1,000 InD training trajectories, 50 InD test trajectories, and 100 OoD test trajectories with a physically meaningful distribution shift — unseen cube counts, expanded workspaces, doubled particle counts, larger cloth, or shifted goal regions. Every shift is exactly reproducible inside the simulator. Videos below are the ground-truth simulator rollouts, side-by-side InD vs OoD, so the reader can see what the distribution shift is.
A disk pusher translates 1–5 colored cubes to a target.
A Franka Panda picks the red cube and stacks it on the green one.
A pole pusher deforms a flexible rope (PyFlex).
Two arms drag a cloth over a fixed sphere with a shared 3D displacement.
A board pusher rearranges granular sand particles (PyFleX).
An arm pours water into a cup via tilt and translation.
A 7-DoF Franka Panda reaches targets via cuRobo planning (Isaac Sim).
A 2-link MuJoCo arm reaches goals via joint torques.
Each pane shows the ground-truth simulator rollout (left side of the original recording). Use the pills above to filter by physics regime.

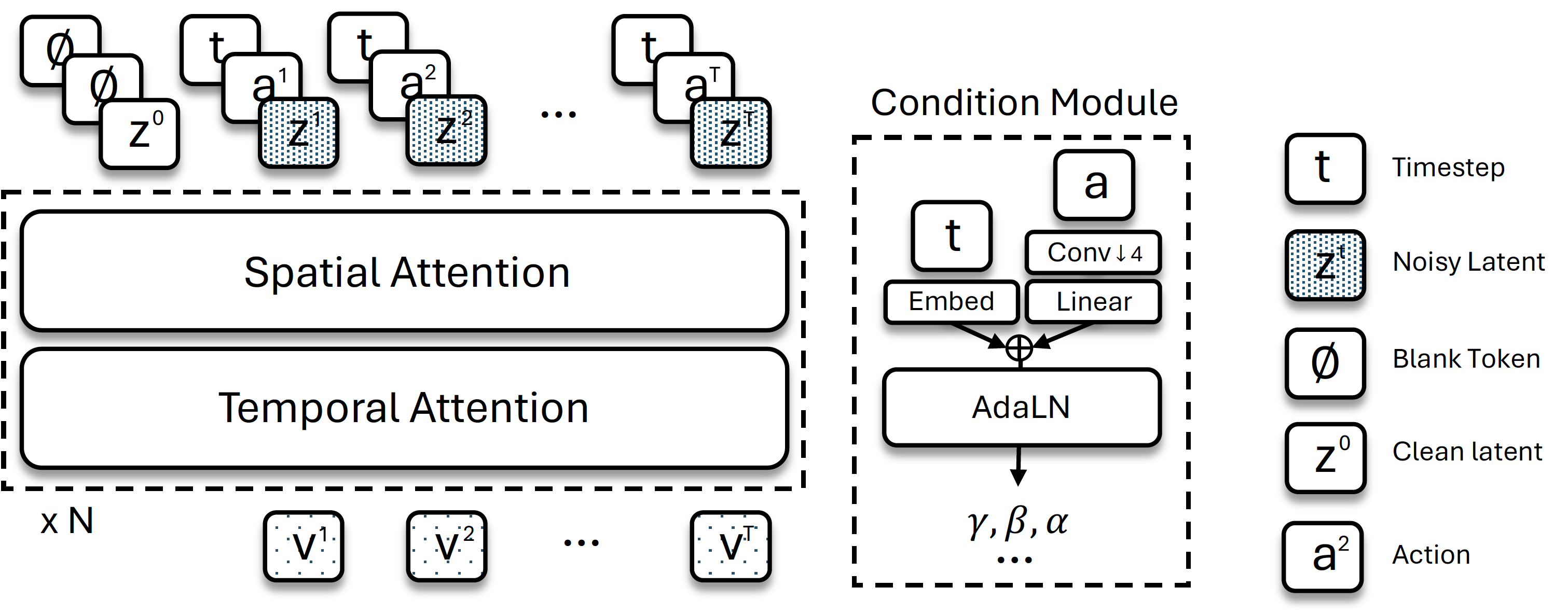

A bidirectional Diffusion Transformer that denoises future latent video tokens conditioned on the past frame and an action sequence, trained end-to-end with flow matching in the latent space of a frozen causal video VAE.
For each environment we evaluate ACWM-DiT-S (100k steps, 50 denoising steps) on a matched InD and OoD split. The pattern is striking: simple geometry generalizes; deformation, particle physics, and high-DoF kinematics do not. Every clip shows ground truth (left) | prediction (right); InD on top, OoD below.
Rigid-body trajectories transfer cleanly across the distribution shift. Cubes occasionally vanish in the final frames of 4-cube OoD scenes — an appearance-shortcut tell.
Coarse pick-and-place survives; the Franka end-effector blurs as target positions move outside the trained set.
Coarse rope shape is preserved across unseen lengths, but the motion-region (masked) error roughly doubles — the model bends the rope plausibly while missing fine contact response.
The largest OoD drop in the benchmark. Contact-rich, large-scale deformation outruns what an AdaLN-conditioned diffusion model captures from appearance alone.
Doubling particle count exposes a fine-grained redistribution gap — overall pile structure persists, micro-dynamics blur.
Pouring trajectories repeat, so error stays bounded — but under unseen volumes the model hallucinates plausible-but-wrong fill levels.
7-DoF Franka articulation breaks first. AdaLN's single conditioning vector becomes a bottleneck — see the cross-attention ablation below.
The cleanest generalizer in the suite: 2-link joint trajectories live on a low-dimensional manifold the model has truly learned.
ACWM-DiT-S, 100k training steps, 50 denoising steps. MSE values are scaled by 10−3.
| Category | Environment | In-distribution | Out-of-distribution | ΔSSIM | ||||
|---|---|---|---|---|---|---|---|---|
| MSE↓ | SSIM↑ | PSNR↑ | MSE↓ | SSIM↑ | PSNR↑ | |||
| Rigid | Push Cube | 2.92 | 0.955 | 25.35 | 2.95 | 0.954 | 25.30 | −0.001 |
| Stack Cube | 5.52 | 0.889 | 22.58 | 7.00 | 0.872 | 21.55 | −0.017 | |
| Deformable | Push Rope | 0.21 | 0.988 | 36.70 | 0.33 | 0.985 | 34.83 | −0.003 |
| Cloth Move | 10.67 | 0.920 | 19.72 | 23.82 | 0.864 | 16.23 | −0.056 | |
| Particle | Push Sand | 0.52 | 0.975 | 32.85 | 1.53 | 0.941 | 28.16 | −0.034 |
| Pour Water | 2.63 | 0.911 | 25.80 | 3.49 | 0.874 | 24.57 | −0.037 | |
| Kinematics | Robot Arm | 1.43 | 0.969 | 28.43 | 6.56 | 0.902 | 21.83 | −0.067 |
| Reacher | 0.26 | 0.992 | 35.85 | 0.27 | 0.992 | 35.65 | 0.000 | |
We probe four design axes: action conditioning, latent space, action dimensionality, and model scale. Each finding is anchored on the same evaluation protocol as the main results.
At da = 2 (Push Cube, Push Rope), AdaLN and cross-attention tie. At da = 7 (Robot Arm) cross-attention recovers +3.18 dB InD and +1.55 dB OoD. At da = 8 (Cloth Move), it slightly hurts InD but yields a striking +6.59 dB OoD: AdaLN's single global vector can't carry per-arm signals.
| Environment | da | AdaLN · OoD PSNR | Cross-Attn · OoD PSNR | Δ |
|---|---|---|---|---|
| Push Cube | 2 | 25.30 | 25.18 | ≈ |
| Push Rope | 2 | 34.83 | 34.77 | ≈ |
| Robot Arm | 7 | 21.83 | 23.38 | +1.55 |
| Cloth Move | 8 | 16.23 | 22.82 | +6.59 |
A causal video VAE with 4× temporal compression outperforms a frame-independent image VAE on both InD and OoD — even on a highly stochastic particle task like Pour Water. Temporal coupling in latent space matters more than higher spatial fidelity per frame.
| VAE | Temp. compression | InD PSNR | OoD PSNR |
|---|---|---|---|
| FluxVAE | 1× | 24.89 | 24.09 |
| WanVAE (ours) | 4× | 25.80 | 24.57 |
On Cloth Move, expanding the action space from a shared 3-DoF displacement to full 8-DoF per-arm control lifts OoD PSNR from 16.23 → 21.60 dB (a +5.37 dB jump), at a modest InD cost. Richer control signals also act as richer observations.
| Action space | da | InD PSNR | OoD PSNR |
|---|---|---|---|
| Shared Δxyz | 3 | 19.72 | 16.23 |
| Per-arm Δpose + grasp | 8 | 18.91 | 21.60 |
Scaling DiT-S → DiT-M → DiT-L (200M → 600M → 800M) yields the largest gains on the OoD split: Robot Arm OoD PSNR climbs 21.84 → 23.51 dB. The S→M jump dominates; M→L is incremental at the current data scale.
| Model | Params | Cloth Move · InD | Cloth Move · OoD | Robot Arm · InD | Robot Arm · OoD |
|---|---|---|---|---|---|
| DiT-S | ~200M | 19.68 | 16.49 | 28.38 | 21.84 |
| DiT-M | ~600M | 19.89 | 16.98 | 29.04 | 23.11 |
| DiT-L | ~800M | 20.01 | 17.24 | 29.27 | 23.51 |
Low-dimensional geometric dynamics (rigid-body translation, 2-link joints) transfer robustly. High-dimensional or stochastic dynamics (cloth, sand, 7-DoF arm) expose the model's reliance on appearance statistics.
At da = 2 the two are indistinguishable. At da = 7–8, cross-attention recovers +3.18 dB InD on Robot Arm and +6.59 dB OoD on Cloth Move — AdaLN's single global vector becomes a per-joint bottleneck.
A causal VAE with 4× temporal compression beats a frame-independent encoder. Expanding Cloth Move to full per-arm control yields +5.37 dB OoD at a small InD cost — richer signals double as richer observations.
OoD failures — cubes vanishing, water levels hallucinated, articulated arms blurring — consistently surface where appearance shortcuts can no longer fake the answer. ACWM-Phys gives the community a clean lever to push diffusion world models toward physical structure.
@article{xue2026acwm,
title={ACWM-Phys: Investigating Generalized Physical Interaction in Action-Conditioned Video World Models},
author={Xue, Haotian and Chen, Yipu and Ma, Liqian and Zhao, Zelin and Moukheiber, Lama and Zhu, Yuchen and Che, Yongxin},
journal={arXiv preprint arXiv:2605.08567},
year={2026}
}
